110kV Polymer Housed Surge Arrester with Leave Device for Substation

MOQ:	10
prezzo:	1

Detail Information

Certificazione:

ISO9001

Modello n.:

YH10CX5-110

Tipo di installazione:

Scaricatori paralleli

Materiale:

Zno

Classe di linea:

Voltaggio:

126

Forma:

Cuboide

Capacità di rottura:

Interruttori ad alta tensione

Medio di estinzione dell'arco:

Aria

Capacità di flusso:

100KA

Livello CTI:

Distanza di fuga:

III Livello Inquinamento pesante

Tensione di sistema nominale:

110

Tensione nominale:

100

tensione di funzionamento continua:

Impulso ad alta corrente:

4/10 μ s

Evidenziare:

Product Description

110kV Polymer Housed Surge Arrester with Leave Device

Product Specifications

Attribute	Value
Model NO.	YH10CX5-110
Installation	Parallel Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Material	ZnO
Brand	Yongde
Breaking Capacity	High Voltage Circuit Breakers
Voltage	126
Specification	IEC60099-4
Production Capacity	5000PCS/Year

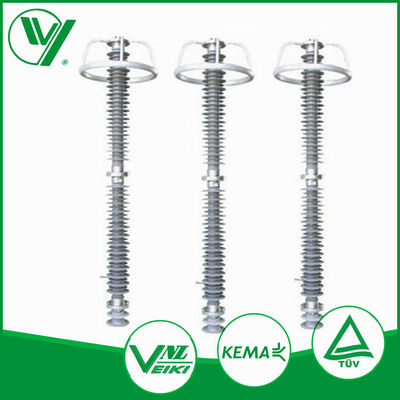

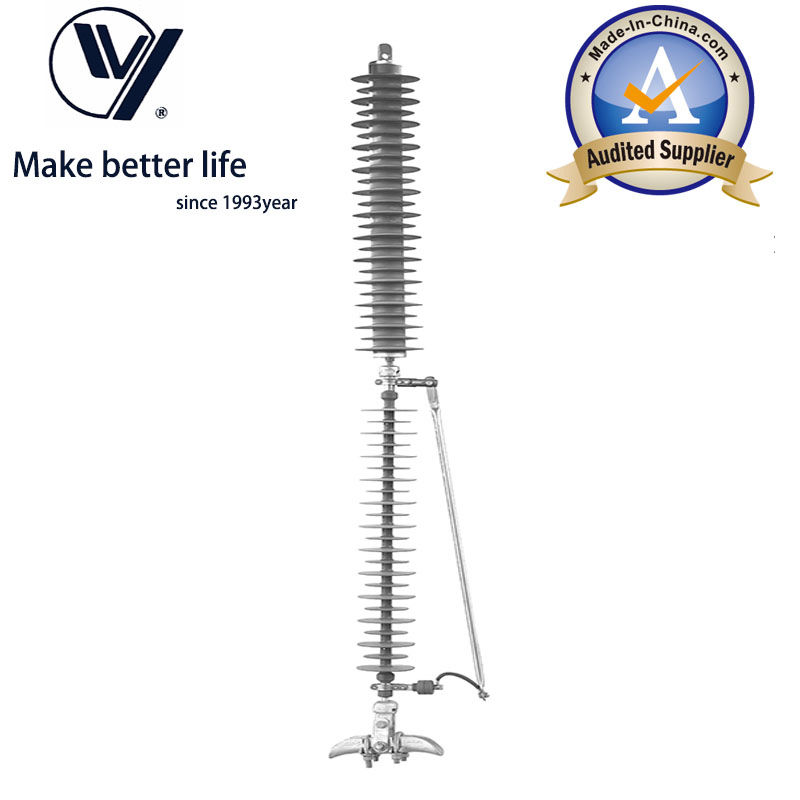

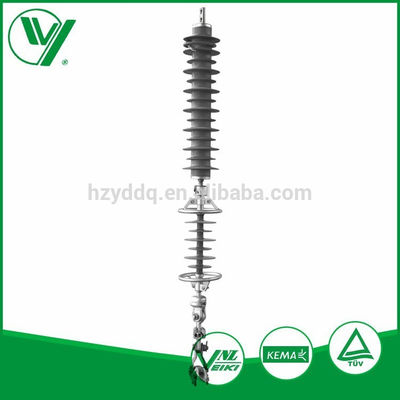

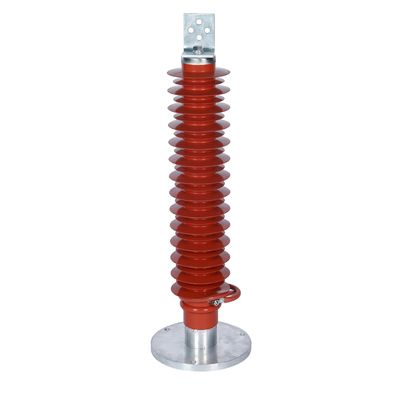

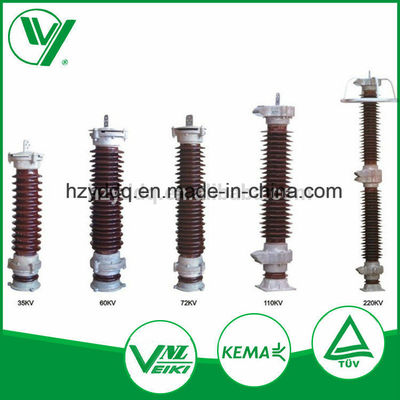

Product Images

Key Features

Smooth volt-second characteristic curve for optimal performance
Excellent insulation coordination and protective characteristics
High electrical frequency withstand voltage in discharging gap
Tube-like structure with side injection hole for better performance
Overall injection molding polymer housing with no internal air gaps
Independent encapsulation of core columns for superior air-proof performance
Side injection hole with pressure release function
Core component zinc oxide varistor with 100kA flow capacity
Excellent anti-fatigue behavior with Polymer Housed products
CTI level of six with creepage distance meeting III level heavy pollution requirements
