Limitatore di tensione della sottostazione

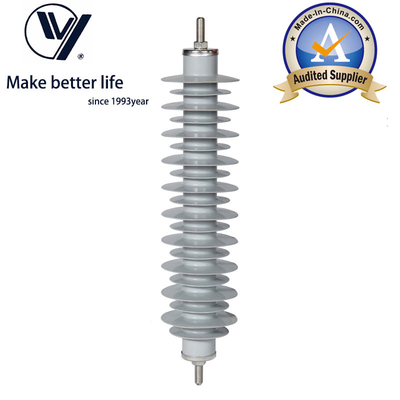

YH10W5-36 36kV 10ka ZnO Substation Lightning Arrester

MOQ:	1
prezzo:	0.1

Detail Information

Product Description

Detail Information

Certificazione:

ISO9001

Modello n.:

YH10W5-36

Installazione:

Scaricatori paralleli

Materiale:

Zno

Fase:

Separare

Corrente di scarica:

10KA

Voltaggio:

36KV

Tensione nominale:

36KV

Diametro del capannone:

138/108

Altezza:

362 mm

Peso lordo:

4,5 kg

Distanza di fuga:

1148

Corrente di lunga durata:

400A

Impulso di fulmine:

170/200kv

MCOV:

29kv

Corrente nominale:

10kv

Evidenziare:

36kV substation lightning arrester

10ka ZnO lightning arrester

high voltage surge arrester

Product Description

Included Disconnector Bracket Composite Arrestor 10ka, 36kv for Substation

Product Specifications

Attribute	Value
Model NO.	YH10W5-36
Installation	Parallel Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Shape	Spiral
Material	ZnO
Brand	Yongde
Phase	Single
Housing Color	Grey
Discharge Current	10ka
Voltage	36kv
Transport Package	Carton
Specification	IEC60099-4
Trademark	YONGDE
Origin	China
HS Code	85354000
Production Capacity	5000 PCS/Month

Technical Parameters

Rated voltage: 36KV

Shed diameter: 138/108

Height: 362mm

Gross weight: 4.5kg

Creepage distance: 1148

Long duration current impulse: 400A

Lightning impulse withstand: 170/200KV

Type	YH10W5-36/98
Rated voltage (kV)	36
MCOV (kV)	29
Nominal Current (kV)	10
Residual voltage of steep impulse at 5kA (kV)	106
8/20µS Residual voltage of lightning impulse current at 5kA (kV)	98
Residual voltage of switching impulse current at 1kA (kV)	75
1mA D.C reference voltage (kV)	51
Line discharge level	1
2mS long duration impulse current (A)	400
4/10µS High current impulse (kA)	100
Lightning impulse withstand (kV)	200
Power frequency voltage withstand (dry/wet) (kV)	70
0.1S TOV (kV)	43.2
1S TOV (kV)	41.4
10S TOV (kV)	39.6
1200S TOV (kV)	36
Creepage distance (mm)	1148
Material employed in series non-linear resistor	Zinc Oxide

Our Services

Inquiry response within 24 hours for products or pricing
Professional support from experienced, English-speaking staff
OEM & ODM services available for custom designs
Distributorship options for unique designs and current models
Complete protection of your sales areas, designs, and private information

Purchase Information

100% authentic products with guaranteed quality
Shipping discounts available when providing complete address details
Mixed shipments available for different specifications to lower freight costs
Wholesale only - contact us for samples or inquiries

Quality Assurance

We provide top-quality products to establish long-term partnerships with our customers. Our competitive pricing strategy helps attract buyers to our store. All orders are shipped promptly after confirmation.
